Feeding Line Poultry Farming Nipple Drinker Line Pan Feeder System Poultry Farm Chicken Equipment for Broiler Chicken

200 Meters
$19.80(200 - 499 Meters) $15.50(500 - 1499 Meters) $12.50(>=1500 Meters)
Feeding Line Poultry Farming Nipple Drinker Line Pan Feeder System Poultry Farm Chicken Equipment for Broiler Chicken
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Condition: New
Warranty: 1 Year
Showroom Location: Viet Nam
Model Number: FB019
Applicable Industries: Farms, Greenhouse, Poultry house, Workshop, Factory
Marketing Type: Hot Product 2021
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 1 Year
Core Components: Bearing, Motor, Engine
Key Selling Points: High Productivity
Weight: 10 KG
Name: automatic feeding ling
Usage: for green house/poultry house
Application: Poultry Farm Chicken Feeding Line
Color: orange and white
weight of feeding pan: 628g
Advantage: Saving Labour
feeder capacity: 40-50 broilers/per feeder
Certificate: CE
Diameter of feeding pan: 31.5cm
Material of feeding pan: pure plastic
Informazioni di base
Certificazione: CE
Model Number: FB019
Termini di pagamento e spedizione
Packaging Details: standard
Supply Ability: 5000 Meter/Meters per Month
Descrizione di prodotto
Company Profile
QINGZHOU FUBO KAIYUAN INDUSTRY CO.,LTD is a professional manufacturer of animal husbandry equipment , We have more than 12 years experience in this industry with 4 producing lines.
We are mainly engaged in producing and supplying full set of chicken farm equipment including Automatic feeding/drinking systemfor poultry, Ventilation system, Evaporative cooling system,Humidificationand heating equipment.
Products Description

FB Series Automatic poultry Feeding& Drinking System

Automatic feeding system consist of,
feeding system and delivery system,
drinking system
feeding storage
control system.
Product Paramenters

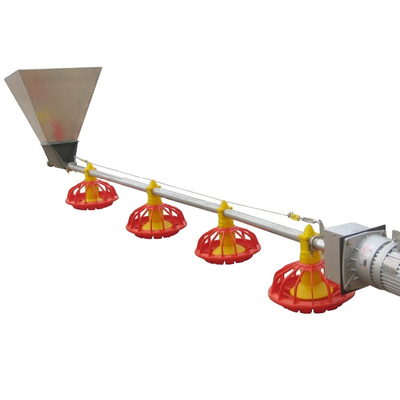

1) Feeding system:

This system is including hopper,conveying pipe (auger inside),pan feeder,feed sensor and driving motor, suspensiog lifting
system,motor system.

Vice hopper volum: 115 L /200L, material: hot-dip galvanized sheet
material thickness: 1mm

Conveying pipe & Auger:
Feeding pipe material: hot dip galvanize steel pipe (275g zinc coating)
Conveying pipe: 3m with 3 pans or 4 pans
Dia.: 45mm, 1.2mm thickness
Auger: imported from South Africa
Feeding ability: 450kg/h

Delivery system:
The function of delivery system is to transmit the feed outside shed to the hopper of feeding system inside, control system
indicates delivery system to work automatically.

2) Drinking system

The nipple drinking system can provide fresh and clean water for poultry which is crucial for the good growth of poultry. At the same time, it's usage can improve the feeding environment, reduce food waste and lower the labor intensity. So the nipple drinking system has become the most integral aspect of modern standard poultry feeding.
1.Nipple Drinker
1)2 types: cone value type nipple, ball valve type nipple
2)Use : layers , broilers , chicks , breeders
3)Material : high quality plastic coat outside , stainless steel inside
2.Drip cup
Material : high quality pp/pvc plastic

Features of nipple:

1. Drinkers can be triggered from 360 degree which helps young birds start well and makes drinking easier.
2. Provide the right amount of water for their climate and house conditions.
3. Nipple is easy to be dismounted and replaced
4. The service life of the high-quality stainless steel material with optimum anti-corrosion performance can reach more than 10years.

3. Water pipe

Two kinds of water pipe for choose : round pipe/dia:25mm,
square pipe /dia: 22mm

4.Water regulator

Material : high quality PVC plastic
Installed at the head or middle of drinking line.

5.Hanging system

Proper height is very important for healthy growth of chicken
and the height is adjustable .

3) Control system:

Feed of poultry raising farm is stored in the silo, so as to save large account of feed, and also to ensure the good condition of feed. Different specifications of silos are alternative to choose according to the daily consumption and the size of silo.
Materials of silo consist of galvanized sheet and glass fiber reinforced plastic.

4) Feeding storage

Control box control the whole system. The control box works sensitively and steadily is extremely important, sensitivity and steady are the base of choosing electronic components. In order to avoid unnecessary waste.
Application Images
Customer Photos

1. Are you real manufacturer or ..? -- Yes, we are 100% original manufacturer of exhaust fan. Our factory located at Weifang city , ShanDong province . In design, materials procurement, manufacturing semi-finished products testing, finished products are as such as strict control to ensure product quality. Welcome to visit us. 2. Can you do make our own brand? --Yes, we can provide the OEM &ODM service. 3. Any guarantee for your products? --Our company's culture is "Quality is our culture!" All of our products with 12 months FREE GUARANTEE,never need to worry about the after-sale service,we will always be here to support your business! 4. How about the delivery time? --Usually for sample order 1-2 days, for mass order 7-15 days. 5.What's the payment term? A:Payment: 30% prepay By T/T ,70% pay before loading container. By T/T or L/C.
